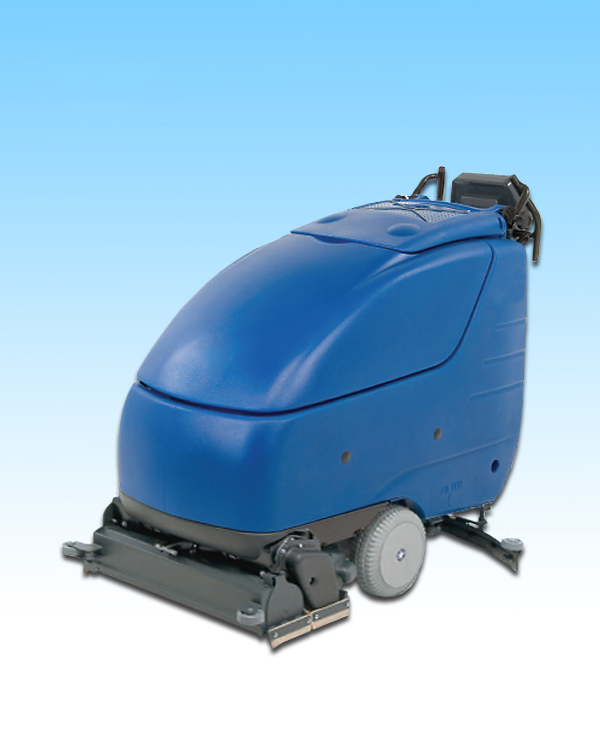

Razor Plus 28C CYLINDRICAL Traction Drive 28″

SKU: 686138CYLW

$14,126.22 $7,474.19

Solution tank size:21 Gal

Power source:Battery

1 year warranty from Atlanta

You can strip floors using Janilink Auto Scrubbers

28″ Janilink Gel Battery Razor Plus 28C
Floor Auto Scrubber- 686138CYLW
Delivers Best Value in the Industry

Compact for narrow aisles & congested areas

ECO system for maximum productivity

Most popular units in the U.S.


Tools free, interchangeable scrub


Onboard battery charger

ECO solution system for

enhanced productivity

Whisper-quiet operation

Ergonomic operator controls

Brush TypeCylindricalScrub Path28 in (71 cm)
Max Productivity

@ 3.2 mph

39,400 ft2/hr (3,660 m2/hr)Max Productivity

@ 1.5 mph

18,500 ft2/hr (1,719 m2/hr)
Run Time3 – 4.5 hrs. (variable by battery

size and scrubbing application)

Scrub Head Size(2) 27in (61 cm) brushes
Voltage24 VPower Source(4) 6 V batteries (wet acid and gel cell available
Onboard Battery Charger24 V, 25 amp Wet/GelBrush Speed600 rpm
Brush Pressure70 lb (32 kg)Brush Motors(2) 0.60 hp
Solution Tank21 gal (80 L)Recovery Tank21 gal (80 L)
Vacuum Motor0.68 hp 3-stageSound Level66 dB A at operator’s position
Drive System0.27 hp variable forward and reverse max speed = 3.2 mph (5.2 km/hr), 10% gradeabilityDimenstions

(w/o squeegee)

W = 30 in (66 cm)

L = 59 in (150 cm)

H = 42 in (107 cm)

Squeegee Width32 in (81 cm)WeightMachine Only = 265 lb(120 kg), With Max Battery = 539 lb (245 kg)

* Specifications are subject to change without notice.
  Razor Plus 28C is perfect for…
Schools and


Retail Facilities
Healthcare Facilities
Municipal Facilities
Contract Cleaners
Industrial Settings
Office Buildings

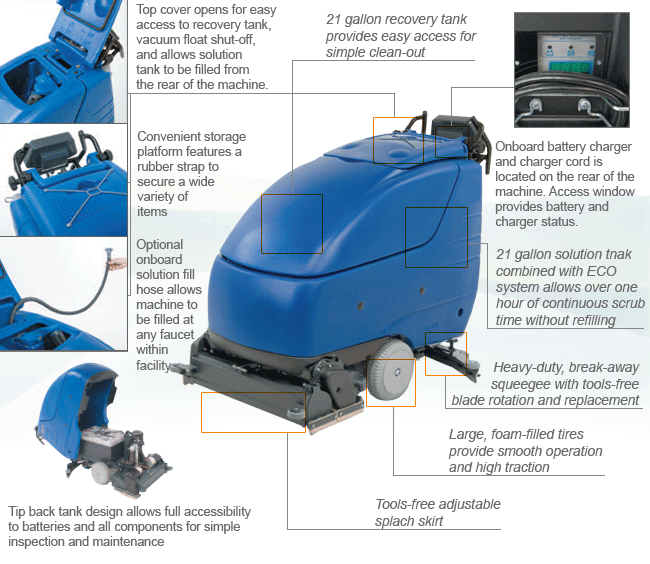

Adjustable, ergonomic

paddle handle provides

comfort and safety.

Simple control panel design

give quick access to variable

scrub pressure, ECO solution


and click-off scrub

head system.

Counter-rotating brushes

deposit loose debris into

hopper for sweep/scrub


Cylindrical scrub decks

feature tools-free

removable brushes.

The Janilink Razor Plus 28C designed on a modular platform to allow tools-free exchange of scrub decks.
The Janilink Razor Plus 28C have presweeping


21 gallons solution and recovery capacity, variable scrub pressure, the industry’s best sound level, and a standard onboard battery charger.
Options include additional scrub decks for multiple applications, maintenance-free gel batteries, and multiple scrub brushes.
The cumulative result is a level of innovation, flexibility, safety, performance, productivity, reliability, and value not previously experienced in walkbehind automatic scrubbers.
The Economically Calibrated Orifice (ECO) System allows more than a full hour of productive scrubbing on a single refill/dump cycle.

TIP: When scrubbing extremely dirty floors, operate the machine with vaccum motor off and squeege blade up to allow chemicals to penatrate dirty surfaces. After thoroughly scrubbing floor, then pick up solution.
